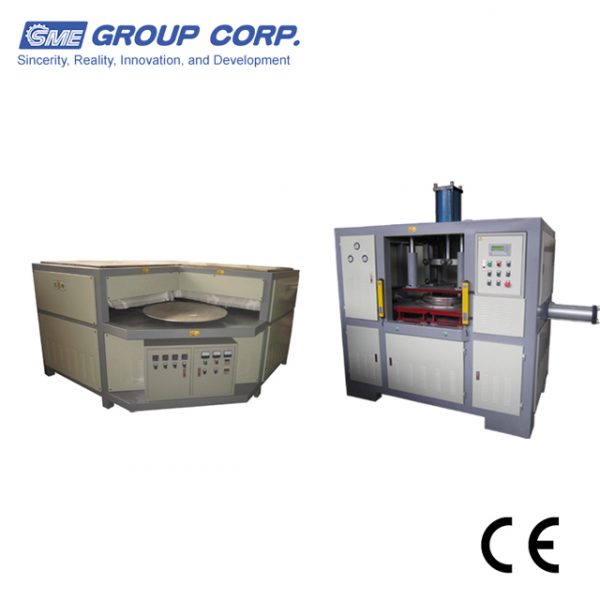

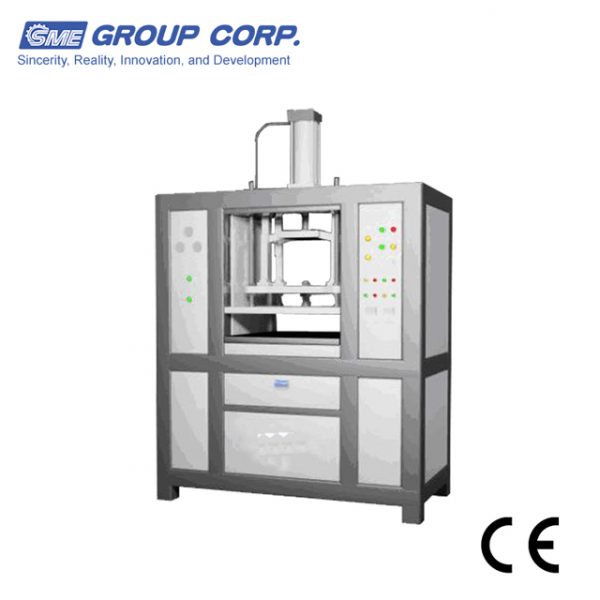

Semi-automatic Acrylic LED Lamp cover Shell cover led ceiling lamp shade blowing forming machine
- Description
- Inquiry
Description
Description
This machine is based on infrared radiation heating, positive pressure blow up molding equipment, and through the specialized design, elaborate, make you simple operation, easy to use which is a simple chimney or light box production equipment.

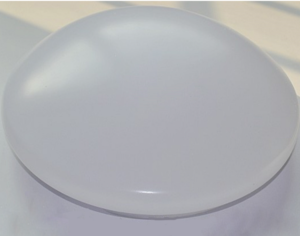

Samples
Technical Data LSF series
Model | LSF-450 | LSF-600 | LSF-800 |
Forming Dia. | ≤450mm | ≤600mm | ≤800mm |
Suitable material | PVC, PC, Acrylic | ||
Forming height | ≤150mm | ||
Forming Thickness | 1-3.5mm | ||
Color | Customizable | ||
Power supply | 380VAC/3phase/50Hz | ||
Upper mold | Hydraulic pressure + Hinge or pneumatic | ||
Air pressure | 0.5-0.8Mpa | ||
Suggest air compressor | 15HP | ||
Safety device | Safety curtain | ||
Switch | “DELIXI” or “CHNT” China | ||
Air Cylinder | “Zhicheng” China or “Airtac” Taiwan | ||
Electromagnetic Valve | “Airtac” Taiwan | ||
Consumption | 22KW | 26KW | 60KW |
Two machines weight | About 2000KG | About 2500KG | About 3500KG |

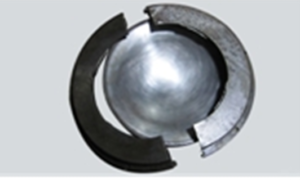

The mold
Spare part list
No. | Spare part | QTY | Remark |
1 | Infrared ceramic heater | 10pcs | China |
2 | High temperature resistant flannelette | 4pcs | |
3 | Switch | 2pcs | |
4 | Solenoid valve | 2pcs | |
5 | Contactor | 2pcs | |
6 | Thermal probe | 2pcs |
Payment Terms: T/T 40% deposit before production, 60% balance due before delivery date;
Delivery time: 25-35 business days after deposit;
Validity: 30 days after quotation.
Departure Port: Guangzhou Huangpu port
Packing: wooden block (The EXW price is just simple packing. Not the wooden block.)
Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine.
Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 100 USD/day for training cost.
