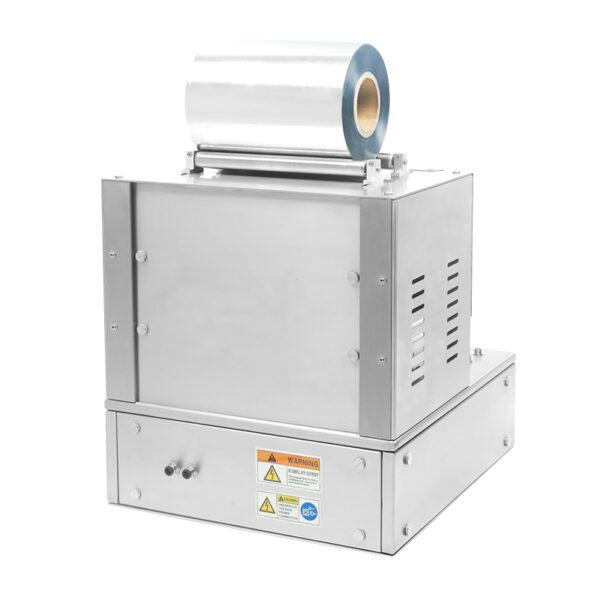

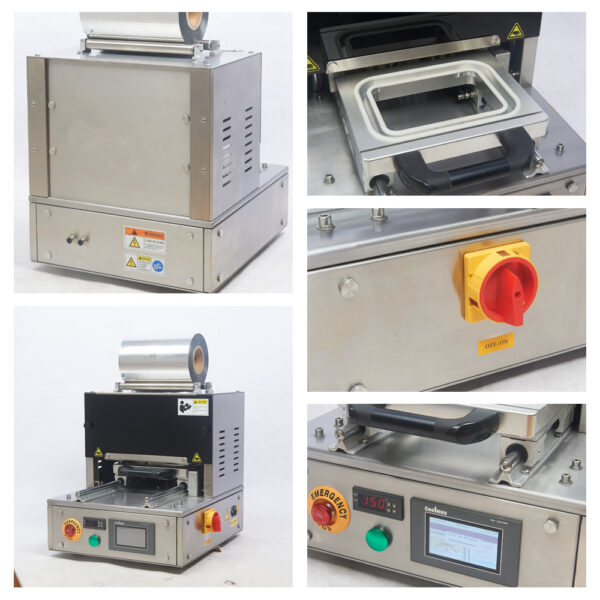

Auto Plastic Tray Sealer Machine

The semi-automatic tray sealers are suitable for industrial use – for packaging foodstuffs, medical and pharmaceutical products, and industrial and consumer goods. They seal trays made from various materials, such as plastic, aluminum, cardboard and foamed materials, as well as a large variety of cover films. Trays are reliably and safely processed. These machines are suitable for the manufacture of MAP and EMAP packs, as well as the manufacture of vacuum skin packaging. Due to their compact dimensions, they can be used flexibly.

Max Width of Film(mm) :350

Max Diameter of Film(mm):260

Sealing 1 at a time: 200*140

Air Exchanging Rate(%) :≥99

Consume Power(kw) :2

Packing Speed(cycle/min):3

Air Filling Precision(%) :≤±1
Electrical Requirement(v/Hz) :220/50
Machine Weight(kg) :80

Machine Dimensions(mm) :460×530×550

Matching degree
-Heat sealing
-MAP
-Replaceable tray
-Need Air compressor
-Packed in wooden cases
