Automatic Blister PVC/PP/PET Products Packing beautiful toys heat sealing machine

Automatic Blister PVC/PP/PET Products Packing beautiful toys heat sealing machine

  • Description
  • Inquiry

Description

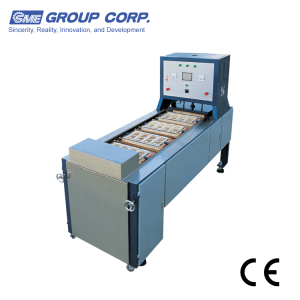

Automatic Blister PVC/PP/PET Products Packing beautiful toys heat sealing machine -BP80

Automatic blister heat sealing machine-BP80

The machine is used in PVC/PP/PET etc. sealing



1) By relay under auto mode

2) High capacity

3) Environmentally friendly



Description

       BP series Automatic Blister Sealing Machine is suitable to seal the blister cover onto the cardboard, using the pulse fever principle (36V voltage to heating the Bakelite), choosing different current output according to the area you want to seal, then done the sealing under the cooling and pressure-adding environment. This machine can be used on packing beautiful toys, stationery, daily necessity , living goods, cosmetics, industrial products, hardware tools and small toolsvery efficiency and the finished shape is very enjoyable.



The machine data:

ModelBP-8012PLC-FABP-8012FA
Type of operationContinuous chain design
Type of controlPLCRelay
Size of press plate560×380mm
Work units12-14
Press stroke150mm
Power supply 220VAC1PH
Power consumptions3KW2.2KW
Production capactiy16 times/min Max.
Machine size2500×850×1900mm2500×850×1850mm
Machine weight400Kg450Kg



Characteristics

1. The adoption is adjustable to control an electricity to have fever principle and complete bubble cover and carton heat to match.

2. Pack a product radiant and transparent, raise product file a time.

3. Pack the product transparent beauty, pack speed quickly.

4. Trigger tiny move a switch, the pulse in the machine has fever system and cooling system and then will automatically operate.

5. The whole machine protects to use (protect to use a year, life long support)

Working Principle:

Put material on mould→clamp the product→heat the material→seal product→cool product→take out the product



Basic units:

1.indicator light:tell you whether it is heating

2.temperature controller:control the temperature of the platen

3.heating switch:turn on/off the heating power

4.power swith:turn on/off the whole power

5.The figure of dial

6.count:count the product

7.heating time switch



Excellence of equipment

1.The electro-pyrexia system is adjustable which can control an electricity with fever principle and complete bubble covered and has heating carton to match.

2.The packed products are transparent and beauty,and pack speed is quickly.

3.Trigger a tiny moving switch,the pulse in the machine with fever system and cooling system will automatically operate.

4.The whole machine products to use a year,life long support.



mold:



Automatic Blister PVC/PP/PET Products Packing beautiful toys heat sealing machine -BP80

sample:

Automatic Blister PVC/PP/PET Products Packing beautiful toys heat sealing machine -BP80
