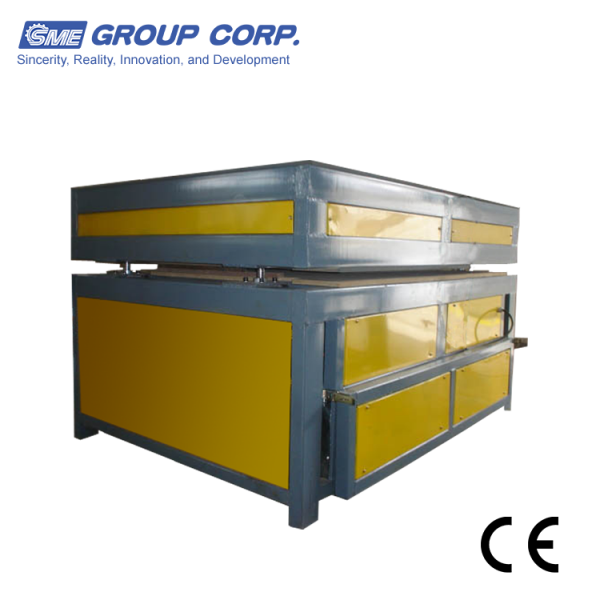

Light box acrylic sign vacuum forming machine

Light box acrylic sign vacuum forming machine

  • Description
  • Inquiry

Description

Plastic flat characters graphic light box acrylic sign vacuum forming machine





1)this machine is used to acrylic forming
2)simplicity of operator
3)environmentally friendly

Plastic flat characters  graphic light box  Acrylic sign vacuum forming machine



1) This machine is used to acrylic forming

2) Simplicity of operator

3) Environmentally friendly



♦Feature

1.With spherical plastic molds can produce words,3D letter,company signboard, spherical light boxes,curved light boxes, plastic flat characters, graphic light box.

2. Power: heating rate of 3-5 minutes, acrylic sheet can be heated for 3 minutes.

3. Voltage 220 and 380V voltage can be chose by the client.

4. Four-cylinder drive, positioning accuracy, not deviation, the cylinder is not easily broken.

5. Pressure force is needed to pressure forming machine 6 times, without considering the problem of insufficient pressure, and equipment can be used long-term and it’s not easily deformed.

6. Small overall dimensions:It occupies little space,is easily movable,and is equipped with safely protection device.

7. Cheap, the cost base, are saving for Equipment. No later maintenance costs.



The machine data:

Model

AAVF1008

AAVF1310

AAVF1315

Work table size

1000×800mm

1300×1000mm

1300×1500mm

Forming stroke

500mm

500mm

500mm

Power supply

220V or 380V 3 phase

220V or 380V 3 phase

220V or 380V 3 phase

Max. pressure

1.5T (Can be adjusted)

1.5T (Can be adjusted)

2.5T (Can be adjusted)

Power Consumption

4KW

5KW

6KW

Machine size(L×W×H)

1300×1300×1100mm

1400×1500×1100mm

1400×2000×1100mm

Net weight

200Kg

300Kg

350Kg



Model

AAVF1320

AAVF1325

AAVF2030

Work table size

1300×2000mm

1300×2500mm

2000×3000mm

Forming stroke

500mm

500mm

500mm

Power supply

220V or 380V 3 phase

220V or 380V 3 phase

220V or 380V 3 phase

Max. pressure

2.5T (Can be adjusted)

2.5T (Can be adjusted)

3.6T (Can be adjusted)

Power Consumption

8KW

10KW

16KW

Machine size(L×W×H)

1400×2500×1100mm

1400×3000×1100mm

2200×3550×1130mm

Net weight

500Kg

700Kg

1000Kg





























APPLICATIONS APPLICATIONS

APPLICATIONS









The Company reserves the power to change the design at any time, without notice



Expendable parts: Heater tube (2pcs), Windpipe (6m), Solenoid Valve (1pcs), AC contactor (1pcs), all parts is free.

Remarks: The machine just press and blow function. If want to add the vacuum forming funtion, must be added USD500. Mould cost is not included in the quotation.

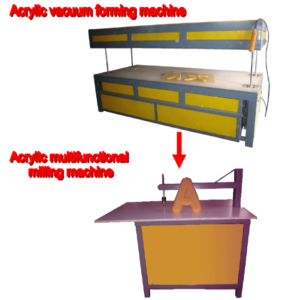

The technical process:

 Remarks: we can offer the video of this machine.Please send the inquiry to us. We will reply you in 24hours.
