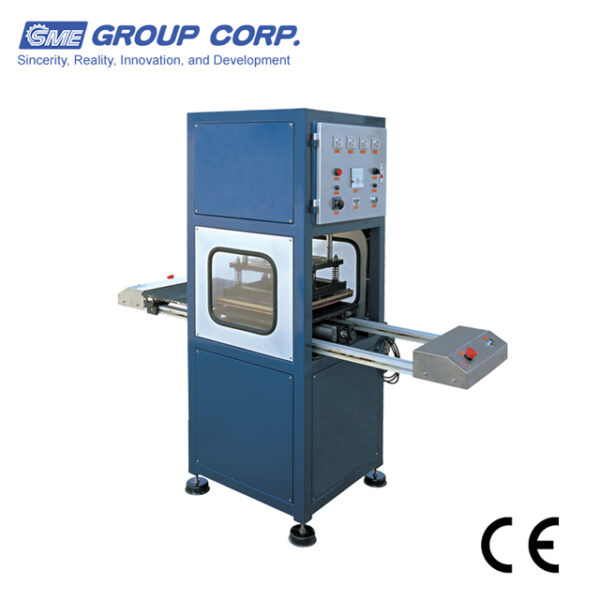

Automatic blister heat sealing machine BP-60LSA Hearer Style Lower
Automatic blister heat sealing machine-BP60 series
The machine is used in PVC/PET etc. sealing
1) By relay under auto mode
2) High capacity
3) Environmentally friendly
Application materials and industry
A. Apply to PVC, PE and PP films, such as the blister sealing with the cardboard (Remark: There is an OU-oil layer on the cardboard surface). The principles is use the heater make the blister and cardboard heat, then use air cylinder press the sealing range make the blister and cardboard sealing.The time of temperature and cooling, the air pressure and the electric current can be adjusted.
B. Because the simplicity of operator, high level of production capacity and low investment costs, the machine is widely used in toys, stationery, household goods, small hardware, electronic products and cosmetics industries.
Technical Data BP60 series
|Type of operation|
|Size of slide plate|
|Size of press plate|
BP series Automatic Blister Sealing Machine is suitable to seal the blister cover onto the cardboard, using the pulse fever principle (36V voltage to heating the Bakelite), choosing different current output according to the area you want to seal, then done the sealing under the cooling and pressure-adding environment. This machine can be used on packing beautiful toys, stationery, daily necessity , living goods, cosmetics, industrial products, hardware tools and small toolsvery efficiency and the finished shape is very enjoyable.
1. The adoption is adjustable to control an electricity to have fever principle and complete bubble cover and carton heat to match.
2. Pack a product radiant and transparent, raise product file a time.
3. Pack the product transparent beauty, pack speed quickly.
4. Trigger tiny move a switch, the pulse in the machine has fever system and cooling system and then will automatically operate.
5. The whole machine protects to use (protect to use a year, life long support)
Put material on mould→clamp the product→heat the material→seal product→cool product→take out the product
1.indicator light:tell you whether it is heating
2.temperature controller:control the temperature of the platen
3.heating switch:turn on/off the heating power
4.power swith:turn on/off the whole power
5.The figure of dial
6.count:count the product
7.heating time switch
Excellence of equipment
1.The electro-pyrexia system is adjustable which can control an electricity with fever principle and complete bubble covered and has heating carton to match.
2.The packed products are transparent and beauty,and pack speed is quickly.
3.Trigger a tiny moving switch,the pulse in the machine with fever system and cooling system will automatically operate.
4.The whole machine products to use a year,life long support.
Machine depending on the die cutting out the corresponding sample, the above presented mold and sample may not be the same, but the truth.
