Automatic blister thermoforming and heating sealing machine

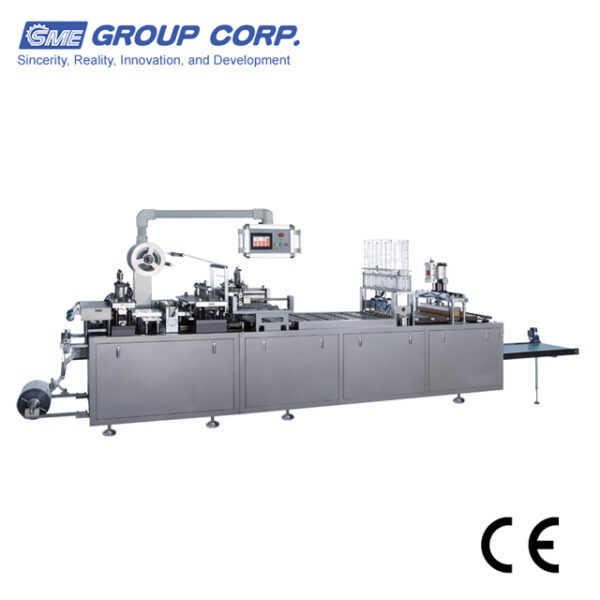

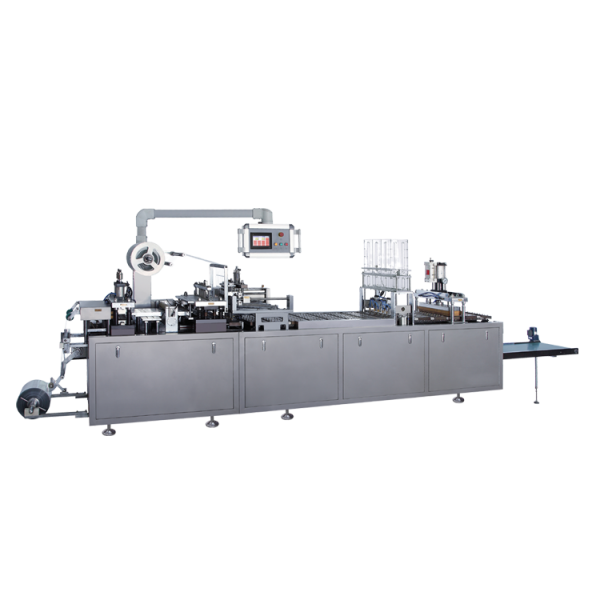

Automatic blister card packing machine AVF-500
- Description
- Inquiry
Description
Packing Sample photo
1.Machine overview
AVF-300 series blister card packing machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.
2.Working process
PVC unreeling →PVC heating →blister tray forming →servo drawing →blister tray cutting →PVC waste edge reeling →blister tray delivery and transferring →product feeding →automatic card feeding →heat sealing →final product output
3. Machine application This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys, hard ward, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car, scissor, flashlight, battery, spark Plug, lip stick, hook, shaver, pencil etc.
4. Main features
A…Mechanical transmission, servo motor driving, encoder control, reasonable Structure, easy operation.
B. Rotating table type heat sealing which will improve the sealing result, reduce the mould expense and help to change the mould conveniently.
C. 304 stainless steel frame, beautiful appearance, convenient for cleaning.
D. PLC control system, frequency speed adjust, which will help to reduce the noise And improve the running stability of the machine.
E. Photoelectrical control, auto detection.
F. Separated card feeder, which will reduce the labor force.
G. The whole machine is separately designed, it is convenient to delivery with lift.
H. To design the mould and auto feeding method according to the product shape.
4.Main Technical parameters
Cutting frequency(times/min) | 12-25times/min |
Maximum travel range | 40-200mm |
Maximum forming area | 480×200mm |
Standard forming depth | 40mm( can be customized) |
Air pressure | 0.5-0.8Mpa |
Air flow | ≥0.5m3/min |
Total power | 380V 50Hz 11.8KW |
Overall dimension | 5800×1050×1850mm(L×W×H) |
Machine weight | 2100kg |
AVF-500 electrical configuration list
No | Name | Model | Unit | Qty | Origin |
1 | Servo motor | MHMD082P1U | set | 3 | Panasonic |
MCDDT3520 | |||||
2 | Reducer | 90-WPE-010 | PCS | 1 | Panasonic |
90-PLE-010 | PCS | 1 | |||
3 | Touch screen | NP5-SQ000B | PCS | 1 | OMRON |
4 | Encoder | E6B2-CWZ6C 1000 wire | PCS | 1 | OMRON |
5 | Inverter | 3G3JZ-A4015 | PCS | 1 | OMRON |
6 | PLC | CP1H-X40DT-D | PCS | 1 | OMRON |
7 | PLC extension | CP1W-CIF11 | PCS | 1 | OMRON |
8 | PLC extension | CP1W-16ET | PCS | 1 | OMRON |
9 | Temperature module | CP1W-TS002 | PCS | 1 | OMRON |
10 | Switch power | S8JC-Z10024C | PCS | 1 | OMRON |
11 | Photoelectrical switch | E3Z-T61A 2M | PCS | 6 | OMRON |
12 | Intermediate relay | LY2NJ DC24V | PCS | 3 | OMRON |
13 | Intermediate relay | G6B-4BND DC24V | PCS | 4 | OMRON |
14 | Approximate switch | TL-Q5MC1-2 | PCS | 5 | OMRON |
15 | Solid state relay | G3NB-240B DC5-24V | PCS | 3 | OMRON |
16 | AC contactor | 3TS3411 220V | PCS | 1 | Siemens |
17 | Air switch | 5SJ6225-7CC | PCS | 1 | Siemens |
18 | Air switch | 5SJ6125-7CC | PCS | 1 | Siemens |
19 | Air switch | 5SJ6332 | PCS | 8 | Siemens |
20 | Button | PB1M-10 green | PCS | 3 | Siemens |
21 | Button | PB1M-01ZR red | PCS | 1 | Siemens |

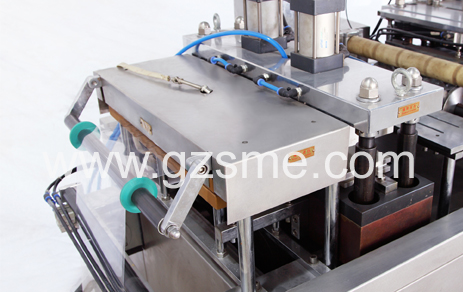

Forming part

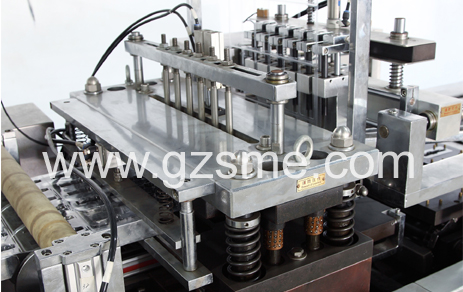

Cutting part

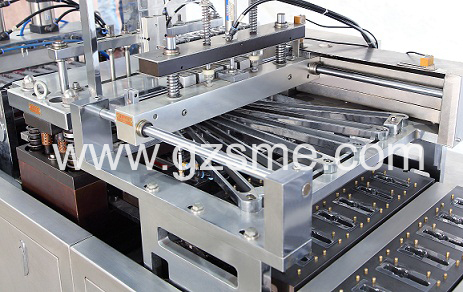

Blister transport part

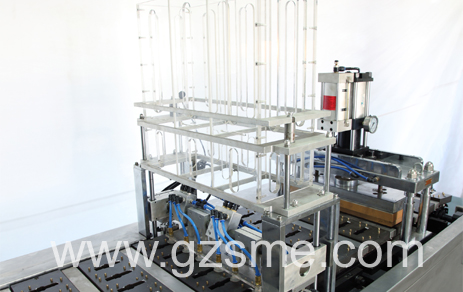

Paper uploading part

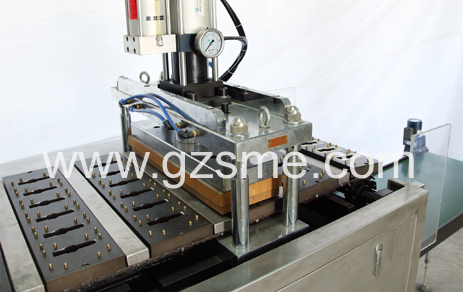

Sealing part

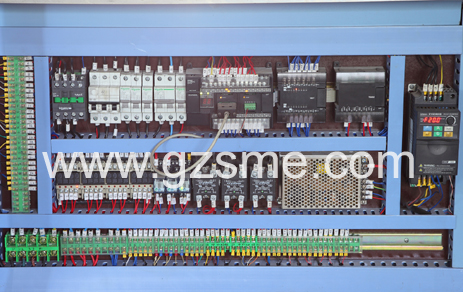

Electric cabinet

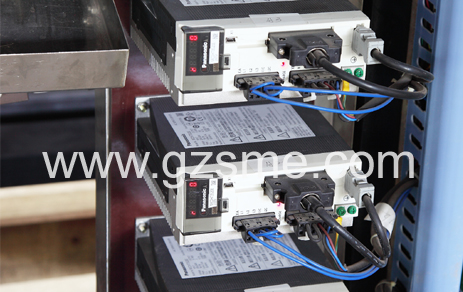

Servo motor
Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine.
Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 50USD/day for training cost.
Delivery Time: It will take within 55-75 days to ship out customer’s goods after get customer’s advance payment.
