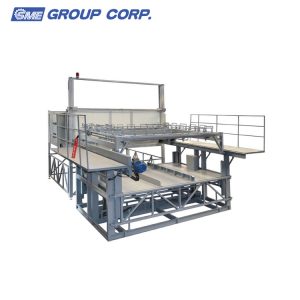

Thick sheet vacuum forming machine machine for car bumper

Thick sheet vacuum forming machine machine for car bumper

The machine is used in PS/PP/PET/ABS etc. thermoforming machine
1)By relay under auto mode
2)High capacity
3)Environmentally friendly

The machine is used in PS/PP/PET/ABS etc. thermoforming machine

1)By relay under auto mode

2)High capacity

3)Environmentally friendly

  • Description
  • Inquiry

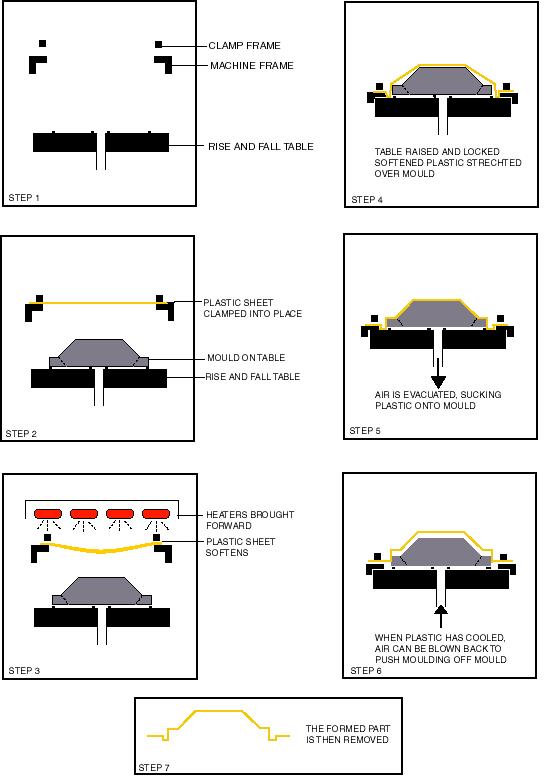

Description

The machine data

Model

TVF2507CB

Forming length

2500mm(Can be adjusted)

Forming width

650mm(Can be adjusted)

Forming height

800mm

Forming Thickness

2-8mm

Color

As the client’s requirement

Power supply

380VAC/3phase/50HZ as the client’s requirement

Power consumption

30KW

Heater consumption

400W×72pcs

Air pressure

0.5-0.7Mpa

Suggest air compressor

15HP

Vacuum pump

100m3/H

Machine size(L×W×H)

3600*2400*2600mm(Fit into 40’ HQ)

Machine weight

3000KG



The main component

PLC and touch screen:Taiwan

Infrared ceramic heater: “SME” China

Temperature control: “TCL” stepless fine-tuning China

AC contactor:”Schneider” France

Cold-water atomizer: “Prona” Taiwan

Cylinder:”Zhicheng” China or “Airtac” Taiwan

Solenoid pilot actuated valve: “Zhicheng” or “XMC” China

Air treatment component:”Zhicheng” or “XMC” China

Auxiliary equipment or component

Vacuum pump: “Becker” Germany

Industrial Chiller:”SME” China

Special Function

1.  Twice vacuum function

2.  Twice top die

3.  Twice demould

4.  Manual demould

5.  Vacuum delay

6.  Aerodynamic fine-tuning function

7.  Sheet frame moving by the cylinder

8.  Blow sheet in advance

9.  Top die can be adjusted by the motor

10. Add the oleo damper reduce the sheet frame moving



Optional accessories list

1.    Air compressor

2.    air tank

Model

Spare part

QTY

1(set)



No.

Name

Unit

QTY

Remarks

1

Ceramic mosaic tile

Pcs

10



2

Solenoid for valve control

Pcs

5



3

Filter

Pcs

1



4

Anti-vibration mounting

Sets

12



5

Intermediate relay

Pcs

3



6

Temperature controller

Pcs

5



7

Ammeter

Pcs

5



8

Switch

Pcs

3



9

Coldwater Mould plate

Pcs

2

It is optional

10

Operation manual

Pcs

1



11

Operation CD

Pcs

1



12

Vacuum pump

Sets

1

“Rietschle” or”Busch” made in Germany

13

Industrial Chiller

Sets

1

“SME” China

Spare part list

Brand Name   SME

Model Number   TVF series

Application   car parts

HS code:8477409000

Remarks: The price is non-including the mold cost.



Samples pictures

Payment Terms: T/T 40% deposit before production, 60% balance before delivery date;

Delivery time: 35-40 business days after deposit;

Validity: 30 days after quote.

Departure Port: Guangzhou Huangpu port                       Packing: –

Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine, operation manual and operation CD, etc.

Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 50USD/day for training cost.
